Introduction

Every DNS-AID post I've written this year has gestured at a deployment story without showing one. DCV explained a trust primitive. The EDNS(0) agent-hint post talked about a signaling channel that doesn't have a hint-aware resolver to read it yet. The TXT-fallback PR I shipped this week is real code, but in the post I described it the demo was hand-crafted records on a testbed BIND inside my LAN. Each of those was useful as a piece of a story; none of them showed what a zone looks like when you treat DNS-AID as a thing you put on your real public domain.

So I did that. I picked five agents that vaguely resemble services I might one day offer through the Darknetian brand — search across the site, a bookings flow for consults, a threat-intel lookup, a DNS-posture audit, and a security-incident coordinator I named morpheus because if it's going to be fictional I might as well have fun — wrote a small Cloudflare-API script, and let it publish twenty-two records to darknetian.com. Then I let DNSSEC sign the lot.

None of these agents serve traffic. There is no live endpoint behind endpoint.darknetian.com, which I pointed at 10.42.0.42 — a perfectly respectable RFC 1918 address that nothing in this universe will ever connect back to. The TLSA records pin the public keys of self-signed certs I generated in memory and threw out before the script finished, so even if someone tried to handshake, they would have no matching key. What does resolve is the substrate: the agent records, the index, the capability descriptors at https://darknetian.com/.well-known/agent-card/<name>.json, and — as a small upgrade from a draft version of this post — the cap-sha256 in each SVCB record actually matches the SHA-256 of the JSON bytes the well-known URL serves. End-to-end integrity is provable from dig to curl to sha256sum.

That's enough to make a public demo land for the audience I care about: people who want to look at a real Cloudflare zone, query it from 1.1.1.1, and see DNS-AID records the way a consumer agent would see them.

The Zone

Twenty-two records, written in one pass:

  1  A          endpoint.darknetian.com            10.42.0.42
 5x  SVCB       .darknetian.com             priority=1, target=endpoint, alpn, port, bap, well-known, cap-sha256, policy, realm, mandatory
 5x  SVCB       ._agents.darknetian.com     priority=0, target=.darknetian.com.
 5x  TXT        ._agents.darknetian.com     capabilities=..., version=..., description=..., category=...
 5x  TLSA       _443._tcp..darknetian.com   3 1 1
  1  TXT        _index._agents.darknetian.com      "agents=name1:proto,name2:proto,..."

The shape follows the current draft of draft-mozleywilliams-dnsop-dnsaid-02: the primary owner is a flat FQDN (search.darknetian.com), and a walkable alias lives at <agent>._agents.darknetian.com in SVCB AliasMode. The walkable form is what a directory or an enumeration crawler hits; the flat form is the canonical owner that everything else points at. The organization index lives at _index._agents.darknetian.com — the underscore on _index is preserved in -02's IANA underscored-node-names registration alongside _agents itself.

The Agents

Each one has a one-line description in the companion TXT record so dig TXT search._agents.darknetian.com returns something readable for someone exploring the zone with a terminal. morpheus carries a regulated realm to show that realm is per-agent, not zone-wide — and also carries an off-spec SvcParamKey that nobody outside this post should recognise. More on that below.

One Agent End-to-End

search.darknetian.com is the canonical owner; querying it for its SVCB ServiceMode record via dnspython against 1.1.1.1 (because macOS-bundled dig 9.10 doesn't know the SVCB mnemonic and silently downgrades to type A) returns:

search.darknetian.com.  SVCB  1 endpoint.darknetian.com.
                              mandatory="alpn,port"
                              alpn="h2"
                              bap="mcp"
                              port="443"
                              key65400="https://darknetian.com/.well-known/agent-card/search.json"
                              key65401="MNavzKWrM5ccLxObaEb-Wa1uWTZ90fcNa-tNNleD78E"
                              key65403="https://darknetian.com/policy/agents/demo"
                              key65404="demo"

The walkable AliasMode at search._agents.darknetian.com points back at it (priority 0, no SvcParams), the TLSA at _443._tcp.search.darknetian.com pins the throwaway cert's SPKI, and the companion TXT carries the human-readable metadata:

search._agents.darknetian.com.       SVCB  0 search.darknetian.com.
_443._tcp.search.darknetian.com.     TLSA  3 1 1 093f7dfdad15dbc7c74ec9083c9fce308cda2dbe4c67f7a92800f74b2b307d48
search._agents.darknetian.com.       TXT   "capabilities=search,retrieval,project-discovery" "version=1.0.0" "description=Search across darknetian.com posts, project pages, and demos." "category=research"

Every one of these answers came back with the AD bit set. 1.1.1.1 is a validating recursive, darknetian.com is DNSSEC-signed, the zone uses algorithm 13 (ECDSAP256SHA256), and every record above has an RRSIG sitting next to it.

All Five, Pretty-Printed

The full set, pulled live from 1.1.1.1 via a dnspython one-liner — the actual to_text() output is the SVCB presentation format from RFC 9460 §2.2:

search.darknetian.com.        SVCB  1 endpoint.darknetian.com. mandatory="alpn,port" alpn="h2" bap="mcp" port="443" key65400="https://darknetian.com/.well-known/agent-card/search.json" key65401="MNavzKWrM5ccLxObaEb-Wa1uWTZ90fcNa-tNNleD78E" key65403="https://darknetian.com/policy/agents/demo" key65404="demo"
bookings.darknetian.com.      SVCB  1 endpoint.darknetian.com. mandatory="alpn,port" alpn="h2" bap="a2a" port="443" key65400="https://darknetian.com/.well-known/agent-card/bookings.json" key65401="5G-fai_0_oujRSkryLzUOo9cM2mufrjGsLtlv_HXdwo" key65403="https://darknetian.com/policy/agents/demo" key65404="demo"
threat-intel.darknetian.com.  SVCB  1 endpoint.darknetian.com. mandatory="alpn,port" alpn="h2" bap="mcp" port="443" key65400="https://darknetian.com/.well-known/agent-card/threat-intel.json" key65401="rkyIu3IA2oR9qeKBIMXuGMNwoV8eM65YnxLIaviJC6c" key65403="https://darknetian.com/policy/agents/demo" key65404="demo"
dns-audit.darknetian.com.     SVCB  1 endpoint.darknetian.com. mandatory="alpn,port" alpn="h2" bap="mcp" port="443" key65400="https://darknetian.com/.well-known/agent-card/dns-audit.json" key65401="B0lyzb0Mc1zoDTc79pyGLryrtnj27VX5s7UrX0l1FOU" key65403="https://darknetian.com/policy/agents/demo" key65404="demo"
morpheus.darknetian.com.      SVCB  1 endpoint.darknetian.com. mandatory="alpn,port" alpn="h2" bap="a2a" port="443" key65400="https://darknetian.com/.well-known/agent-card/morpheus.json" key65401="jqUW3GVXwoVBt1jWCmJaeukLlJwkXdbCbPPM3WPpS_Q" key65403="https://darknetian.com/policy/agents/regulated" key65404="regulated" key65500="nebuchadnezzar"

Pick morpheus out of that list. It carries an extra key65500="nebuchadnezzar" at the end of its SvcParam set that none of the other four have. That key is not defined anywhere in the DNS-AID draft. Section 8 of RFC 9460 says a consumer that doesn't recognise a SvcParamKey must ignore it — so a generic SVCB client doesn't blink. But an operator-aware client that does know the key can act on it. See the off-spec callout below.

The walkable aliases all point home:

search._agents.darknetian.com.        SVCB  0 search.darknetian.com.
bookings._agents.darknetian.com.      SVCB  0 bookings.darknetian.com.
threat-intel._agents.darknetian.com.  SVCB  0 threat-intel.darknetian.com.
dns-audit._agents.darknetian.com.     SVCB  0 dns-audit.darknetian.com.
morpheus._agents.darknetian.com.      SVCB  0 morpheus.darknetian.com.

And the TLSA fingerprints — five distinct SPKI SHA-256 hashes, one per throwaway cert:

_443._tcp.search.darknetian.com.        TLSA  3 1 1 093f7dfdad15dbc7c74ec9083c9fce308cda2dbe4c67f7a92800f74b2b307d48
_443._tcp.bookings.darknetian.com.      TLSA  3 1 1 1fa8d75c9a45eebd35cdcc2009598cada644f17d9d851037348ca0ffcf7fa596
_443._tcp.threat-intel.darknetian.com.  TLSA  3 1 1 633c0d744579cbc2e596bee43bab8cae8929eb364a63c417e4989f5ff2e97169
_443._tcp.dns-audit.darknetian.com.     TLSA  3 1 1 38367045f8b6f26ba039988037406b3f4fc1c17ea4d43096d872be2a5c0f12fa
_443._tcp.morpheus.darknetian.com.      TLSA  3 1 1 4e6a6437587fef2bfae664f4e784f516be5267ccca28f80ebd65538acfb5d2c5

The one-liner that produced the SVCB output:

import dns.resolver
r = dns.resolver.Resolver(); r.nameservers = ['1.1.1.1']
for n in ['search', 'bookings', 'threat-intel', 'dns-audit', 'morpheus']:
    for rd in r.resolve(f'{n}.darknetian.com', 'SVCB'):
        print(f'{n}.darknetian.com.  SVCB  {rd.to_text()}')

That's it. pip install dnspython if you don't already have it; the to_text() method does the RFC 9460 presentation-format rendering for free.

An Off-Spec Key on Morpheus

morpheus.darknetian.com carries one SvcParamKey the other four agents don't: key65500="nebuchadnezzar". That key is not in draft-mozleywilliams-dnsop-dnsaid. It sits well outside the 65400–65408 range that dns-aid-core uses for its registered private-use SVCB params (well-known, cap-sha256, bap, policy, realm, sig, connect-class, connect-meta, enroll-uri under the draft-02 naming), and there's no SvcParam registration anywhere — public or private — that would tell a consumer what it means.

That is the point. RFC 9460 §8 spells out what a consumer must do with a SvcParam it doesn't recognise:

morpheus's key65500 is not listed in mandatory= (the mandatory list is still just alpn,port), so a generic SVCB client resolves morpheus.darknetian.com, treats the unknown key as a curiosity, and uses the record exactly the same way it uses every other ServiceMode SVCB on the zone. Nothing breaks.

But if an operator-aware client — one that has been told the key65500 → nebuchadnezzar mapping out of band — knows what nebuchadnezzar means, it can act on the metadata. Maybe nebuchadnezzar is an authorization token the agent expects on every inbound call. Maybe it's a vessel-routing tag that names which mcp-server instance fields the call. Maybe it's a deployment-class hint used by an internal directory. In this demo the value doesn't actually mean anything — but the mechanism of carrying operator-private metadata through the public DNS substrate, opaque to consumers who don't need it, is real and useful.

Two reasons this matters for DNS-AID specifically. First, it's a clean demonstration that a deployment can extend the SVCB SvcParam set without coordinating with the IETF and without breaking interop. Second, it sidesteps the recurring objection that "DNS is too structured for arbitrary metadata" — RFC 9460's unknown-key handling is exactly the extensibility hook that lets a publisher attach what they need without forking the spec.

The teardown matcher in the publish script catches this record by FQDN substring, so when the demo zone is torn down, the off-spec key goes with everything else.

DANE Without a Real Cert

The TLSA records pin SPKI fingerprints (selector 1, matching type 1 — SHA-256 of SubjectPublicKeyInfo, per RFC 6698 §2.1) from self-signed RSA-2048 certs the publish script generated in memory. Here is the entire cert lifecycle:

key = rsa.generate_private_key(public_exponent=65537, key_size=2048)
cert = build_self_signed(key, common_name=flat_fqdn)
der = cert.public_bytes(Encoding.DER)
spki = load_der_x509_certificate(der).public_key().public_bytes(
    encoding=Encoding.DER,
    format=PublicFormat.SubjectPublicKeyInfo,
)
fingerprint = hashlib.sha256(spki).hexdigest()
# cert + key go out of scope here; only the fingerprint hits DNS

This is fine for a DNS-only demo because the TLS handshake never happens. A real DANE-EE deployment would keep the private key in an HSM or at least a config file the actual service can read on startup; here the script literally cannot reproduce the same fingerprint twice because the RSA generation isn't seeded.

For the demo what matters is that the TLSA records look real from the wire — usage 3 (DANE-EE), selector 1, matching type 1, and a properly-shaped 32-byte SHA-256 digest in the data field — and that a future-PR DANE-aware client would happily refuse to talk to anything whose presented cert doesn't match. Which, since no presented cert exists, is a delightfully tautological way to be DANE-strict.

SVCB in -02 Shape

Direction matters here. The current -02 draft places the primary owner at the flat name and uses the walkable _agents namespace as an AliasMode pointer back to it. That's the inverse of what someone unfamiliar with the draft might guess — they often start out drafting the _agents location as the canonical record and the flat name as the alias. I tripped on that myself when scoping the demo; the user-facing logic for AliasMode points to canonical, not from canonical.

What I ended up with:

search.darknetian.com.            SVCB 1 endpoint.darknetian.com.   # priority 1 = ServiceMode (the real thing)
search._agents.darknetian.com.    SVCB 0 search.darknetian.com.     # priority 0 = AliasMode (the pointer)

A consumer that wants to enumerate the zone walks _index._agents.darknetian.com for the list of agent names, then queries each <name>._agents.darknetian.com, follows the AliasMode pointer to the flat name, and pulls the ServiceMode SVCB with all the metadata. A consumer that already knows the agent name skips the walkable form entirely and queries <name>.darknetian.com directly. Same zone, two entry points, one canonical record.

Agent Cards That Actually Resolve

The key65400 value on each SVCB is a URL to a JSON capability descriptor (the well-known SvcParam in the draft-02 naming); the key65401 next to it is the SHA-256 of the bytes that URL is supposed to serve (cap-sha256). In the first iteration of this demo those JSON documents didn't exist — the URLs 404'd and the hashes were synthetic placeholders. That's a perfectly defensible shortcut for a "look how the DNS records look" post, but it leaves a piece of the DNS-AID story on the floor: the point of cap-sha256 is that a consumer can dereference the URL, hash the bytes it gets back, and compare to what DNS told them. End-to-end integrity, anchored in DNSSEC at one end and a content hash at the other.

So in the rewrite I generated five real agent cards and parked them at https://darknetian.com/.well-known/agent-card/<name>.json — passed through by Eleventy, served as static content by Azure SWA, with /.well-known/* carved out of the SPA navigation-fallback rewrite. Four follow the Model Context Protocol agent-card shape (search, threat-intel, dns-audit); one is MCP and one is in the A2A AgentCard shape (bookings, morpheus). Each one is a plausible-looking card: capabilities or skills, an auth scheme, input/output modes, a documentation URL pointing back at this post.

The verification chain a consumer would run:

# 1. Pull the well-known URI from DNS (SvcParamKey 65400)
$ python3 -c "
import dns.resolver
r = dns.resolver.Resolver(); r.nameservers=['1.1.1.1']
for rd in r.resolve('search.darknetian.com', 'SVCB'):
    print(rd.to_text())
" | grep -oE 'key65400=\"[^\"]+\"'
key65400="https://darknetian.com/.well-known/agent-card/search.json"

# 2. Pull the expected hash from DNS (also signed; AD bit set)
$ dig @1.1.1.1 +short search.darknetian.com TYPE64 | tr ' ' '\n' | grep ^key65401
key65401="MNavzKWrM5ccLxObaEb-Wa1uWTZ90fcNa-tNNleD78E"

# 3. Fetch the JSON and hash the bytes
$ curl -fsS https://darknetian.com/.well-known/agent-card/search.json \
    | openssl dgst -sha256 -binary \
    | openssl base64 \
    | tr '+/' '-_' | tr -d '='
MNavzKWrM5ccLxObaEb-Wa1uWTZ90fcNa-tNNleD78E

The base64url-encoded SHA-256 of the JSON byte stream matches the key65401 value the zone published. Same equality holds for all five agents.

Two things were worth getting right in the JSON itself. First, the morpheus.json card carries a small extensions block:

"extensions": {
  "darknetian:realm": "regulated",
  "darknetian:vessel": "nebuchadnezzar",
  "darknetian:vessel-note": "The vessel field carries the operator routing token published in DNS as the off-spec SvcParamKey key65500..."
}

The darknetian:vessel value matches the off-spec key65500="nebuchadnezzar" on the SVCB record — same data, two transports. A consumer that doesn't speak the Darknetian operator namespace ignores both; one that does can cross-check that the DNS-layer routing tag and the application-layer card agree.

Second, the cards are explicitly demo cards. Each one has a notes field that says so and links back to this post. None of these skills/tools serve real work, but the card shape is faithful to what a working MCP or A2A agent's descriptor looks like in 2026, including protocolVersion, capability flags, and a documented skills/tools array with examples.

Try It Yourself

This is a public zone now. Anyone can run these:

# Org index — what agents does darknetian.com advertise?
dig @1.1.1.1 +short _index._agents.darknetian.com TXT

# Pick one agent, get its endpoint
dig @1.1.1.1 +short search.darknetian.com TYPE64

# Verify it's DANE-pinned
dig @1.1.1.1 +short _443._tcp.search.darknetian.com TYPE52

# Confirm DNSSEC signed end-to-end (look for "ad" in flags)
dig @1.1.1.1 +dnssec search.darknetian.com TYPE64 | grep flags

TYPE64 and TYPE52 are the numeric codes for SVCB and TLSA. macOS-bundled dig 9.10 doesn't know the mnemonics and silently downgrades to type A if you use the string names. brew install bind gets you a current dig that does, but the numerics work from any version.

The records will stay live indefinitely. If you're noodling on an agent-discovery client and want a real DNSSEC-signed zone to develop against without standing up your own, this is one.

What I Learned

Three things came out of it.

One, Cloudflare's API handles RFC 9460 SVCB cleanly, including private-use SvcParamKeys in the key65400–key65408 range. That wasn't obvious in advance. Some managed-DNS providers reject anything outside the standard SvcParamKey set; Cloudflare just stores what you send.

Two, DNSSEC-signing a non-trivial zone with TLSA, SVCB, and structured TXT records was uneventful. ECDSAP256SHA256 over five agents' worth of records adds milliseconds of resolver overhead. The complaints about DNSSEC-deters-adoption that I see in DNS-AID review threads tend to come from people who haven't tried it recently on a modern resolver and a modern managed-DNS provider.

Three, having a real public demo zone is qualitatively different from a testbed BIND zone for the talks I give. It lets the audience reach for their own dig, run a query, and see the answer come back from a recursive they didn't have to configure. Every standards conversation I've been in about DNS-AID has been improved by being able to say "go look at darknetian.com" — a reviewer who can resolve the records on their own resolver argues from what the zone actually does, not from what the draft claims.

P.S. — Watching the Zone From the Homelab

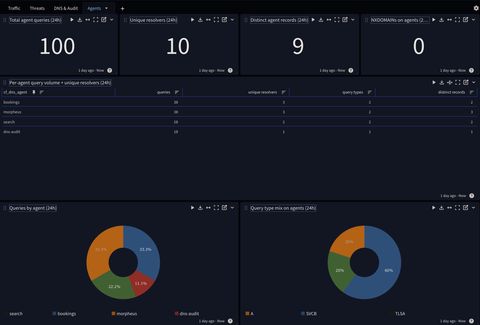

Five hours after publishing the records, I wanted to know what was actually resolving them. Cloudflare's free tier doesn't ship Logpush (the per-request firehose lives behind Enterprise), but dnsAnalyticsAdaptiveGroups on the GraphQL Analytics API is free and bucketed at 1-minute granularity — plenty for a homelab dashboard. So I wrote a 5-minute systemd timer on the homelab Graylog VM that pulls per-(queryName, sourceIP) aggregates, maps each queryName back to one of the five agent buckets, and emits the result as GELF into a dedicated Cloudflare index set.

One DNS-AID-specific gotcha worth knowing if you build something similar: "unique visitor count" doesn't really exist on the authoritative side. The sourceIP field Cloudflare hands back is the recursive resolver — 1.1.1.1, 8.8.8.8, 9.9.9.9, and so on — not the end user behind it. So the "Unique resolvers" tile in the screenshot is exactly that: how many distinct recursives have asked Cloudflare about these names since the zone went live. It's a useful relative signal of how widely the records have spread through resolver caches, but not a literal user count. Anything finer than that would require either a recursive-side log feed (which DNS-AID's agent-hint EDNS work is partly setting up the affordances for) or a TLS-terminating endpoint behind the SVCB target — both of which the demo zone deliberately doesn't have.

The full poller, index-set config, and dashboard JSON are in the graylog repo if you want to copy the shape — pollers/cloudflare_poller.py + dashboards/cloudflare.py is the agents-page substrate.
